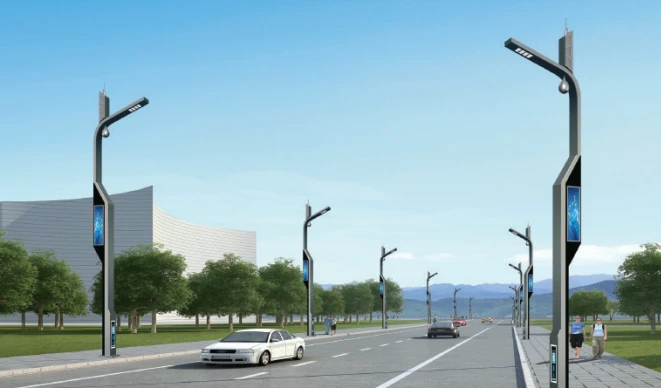

Smart Urban Lighting

Product Introduction

Protection Rating IP65

IP65 fully sealed for dust and water resistance, IK10 impact resistance, and three-proof coating for corrosion resistance, ensuring worry-free operation in extreme environments for 10 years.

Environmental Status Monitoring

Multi-parameter meteorological monitoring + air quality sensing, with automatic response to rainstorms and thick fog. Data empowers urban microclimate governance.

Anti-Electric Shock and Active Safety

Three-level anti-electric shock protection (IP65 + leakage protection + low-voltage power supply). Real-time early warnings for tilting, vibration, and cable theft, achieving zero electric shock risks during construction.

Protection Rating IP65

Fully Sealed Dustproof and Waterproof Structure

• IP65 Protection Standard: The lamp body uses an integrated die-cast aluminum shell, with internal circuit boards and terminal blocks treated with a potting sealant process to achieve complete dustproofing (Level 6) and low-pressure water spray protection (Level 5). It can withstand extreme weather such as heavy rain and sandstorms.
• Weather Resistance Testing: Passes salt spray testing (no corrosion after 1,000 hours), high-low temperature cycling (-40°C~+85°C), and UV aging testing (color difference <3 after 2,000 hours), ensuring stable operation for over 10 years in harsh environments like coastal areas and plateaus.

Anti-Vibration and Impact-Resistant Design

• Military-Grade Impact Resistance Standard: The lamp body passes the IK10 impact test (no damage under 20 Joules of impact energy), capable of withstanding external impacts such as flying stones and hailstones, suitable for mountain highways, mining roads, and other scenarios.
• Seismic Structure Optimization: Features elastic shock-absorbing supports and anti-loosening fasteners, passing GB/T 2423.10 vibration testing (frequency 10-55Hz, amplitude 1.5mm) to ensure the equipment remains secure and does not detach during earthquakes or when heavy vehicles pass by.

Environmental Status Monitoring

Multi-Parameter Environmental Monitoring

• Meteorological Data Collection: Integrates temperature/humidity sensors (accuracy ±0.3℃/±2%RH), atmospheric pressure sensors (range 300-1100hPa), and anemometers (resolution 0.1m/s) to monitor road microclimates in real time, providing decision-making support for traffic management.
• Air Quality Monitoring: Optional PM2.5/PM10 laser sensors (range 0-1000μg/m³) and NO₂/SO₂ electrochemical sensors (resolution 1ppb) update data every minute, supporting pollution tracing for environmental protection authorities.

Intelligent Linkage and Early Warning

• Severe Weather Response: When heavy rain (rainfall >30mm/h) or dense fog (visibility <50 meters) is detected, it automatically increases lighting brightness to 100% and links with LED screens to issue warnings, reducing traffic accident risks.
• Disaster Linkage Mechanism: Interconnected with meteorological bureaus and emergency management departments, it activates emergency lighting mode 30 minutes before disasters such as typhoons or earthquakes, ensuring the safety of evacuation routes.

Data Value Mining

• Urban Heat Island Analysis: Generates urban thermal maps based on streetlight distribution density and temperature data to guide green belt and permeable pavement planning, mitigating the heat island effect.
• Traffic Flow Inversion: Uses ambient light sensors and infrared counter data, combined with AI algorithms, to estimate regional traffic flow (error <15%), assisting in traffic signal optimization.

Anti-Electric Shock and Active Safety

Three-Level Anti-Electric Shock Design

• IP65 + Leakage Protection: The lamp's sealed structure prevents rainwater intrusion, while a built-in 30mA leakage protector responds in <0.1 seconds-far exceeding the national standard (0.3 seconds)-to immediately cut power in case of electric shock.
• Safety Voltage Power Supply: Supports DC24V low-voltage power supply (replacing traditional AC220V) to eliminate high-voltage electric shock risks, especially in crowded areas like schools and parks.

Active Safety Protection Technology

• Tilt and Vibration Monitoring: Built-in three-axis accelerometers continuously monitor lamp post tilt angle (accuracy ±0.1°) and vibration frequency. When impacted or experiencing foundation settlement, the system automatically alarms and locates faults.
• Cable Theft and Damage Early Warning: Distributed optical fiber sensing technology enables real-time vibration monitoring of cables (positioning accuracy ±1 meter). Alarm messages are pushed to the operation platform within 30 seconds of theft or construction damage.

Construction and Maintenance Safety

1. Live Work Protection: Supports a "no-power-interruption maintenance" mode, isolating individual lamps via intelligent switchgear so maintenance personnel can work without cutting off the entire circuit, improving efficiency by 50%.
2. Safety Training and Certification: Provides a VR safety training system simulating scenarios like electric shocks and high-altitude falls to enhance safety awareness among maintenance staff, reducing accident rates by 80%.
