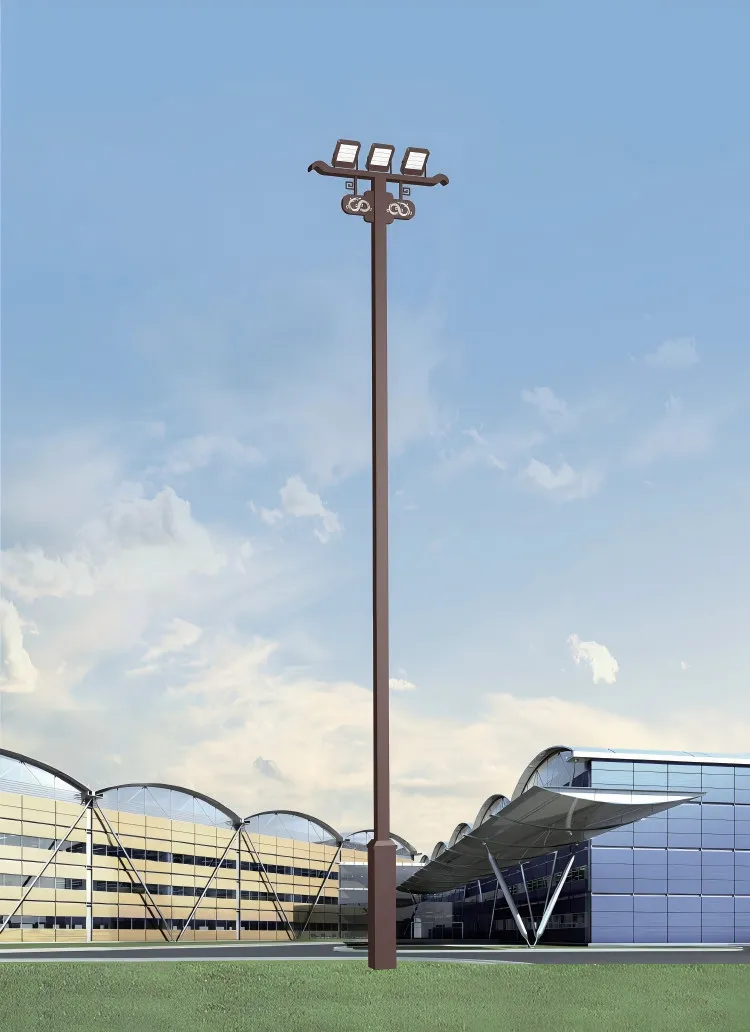

Solar Mini Mast Light

1.30-120W precise lighting, reducing light waste and light pollution
2.Dual optimization of precise lighting and energy efficiency
3.Monocrystalline silicon solar panel, the core guarantee for efficient power generation, reliability and durability
4.Heat dissipation technology, fin array + nano-coating

Send Inquiry

Description

Product Introduction

◎Low-power advantages: 30-120W precise lighting reduces light waste and light pollution, lowers battery costs, extends the light source life to 50,000 hours, and improves energy efficiency by 40% compared with traditional high-power solutions.

◎Core value of monocrystalline silicon: Conversion efficiency ≥22%, strong low-light response, 25-year attenuation ≤15%. It generates 15-20% more electricity than traditional polycrystalline silicon, ensuring stable power supply on cloudy and rainy days.

◎Breakthrough in heat dissipation technology: The fin array + nano-coating design reduces the LED junction temperature by 15-20℃, enabling 5-year maintenance-free operation. The light decay rate in extreme environments is 50% lower than that of traditional solutions.

Low-Power Design

Power Adaptation to Scenario Requirements

◎Avoiding light waste: Low power combined with batwing or rectangular light spot design concentrates light on target areas (such as roads 8-12 meters wide) with illuminance uniformity ≥0.6. Compared with traditional high-power lamps (above 200W), light spillage is reduced by 40%, minimizing the impact of light pollution on the surrounding environment.

◎Extending battery life: Low power significantly reduces the demand for battery capacity. For example, a 60W light source with a 100Ah lithium battery can support continuous operation for 3 cloudy and rainy days, while a 200W light source requires a 300Ah or larger battery, increasing the cost by 2 times.

◎Improving system stability: Low-power lamps generate less heat. Combined with natural convection heat dissipation design, the light source life can reach more than 50,000 hours (LED light source), extending the maintenance cycle by 50% compared with traditional high-pressure sodium lamps.

Comparison with High-Power Lighting Solutions

Parameter	Solar Mini Mast Light (60W LED)	Traditional High Mast Light (200W LED/High-Pressure Sodium Lamp)
Applicable scenarios	Secondary roads in parks, small parking lots (coverage radius 15-20 meters)	Large squares, main roads (coverage radius over 30 meters)
Solar system cost	Low demand for battery capacity, overall cost optimized by 35%	Requires large-capacity batteries and high-end solar panels, with high cost
Light pollution control	Precise light distribution, spilled light ≤8%	High-power floodlight, spilled light ≥35%
Maintenance cycle	Light source life of 50,000 hours, maintenance once every 5 years	High-power light source has a short life, requiring replacement every 2-3 years
Energy efficiency ratio	Luminous efficiency ≥160lm/W, higher illuminance per unit power	Luminous efficiency ≤120lm/W, serious energy waste

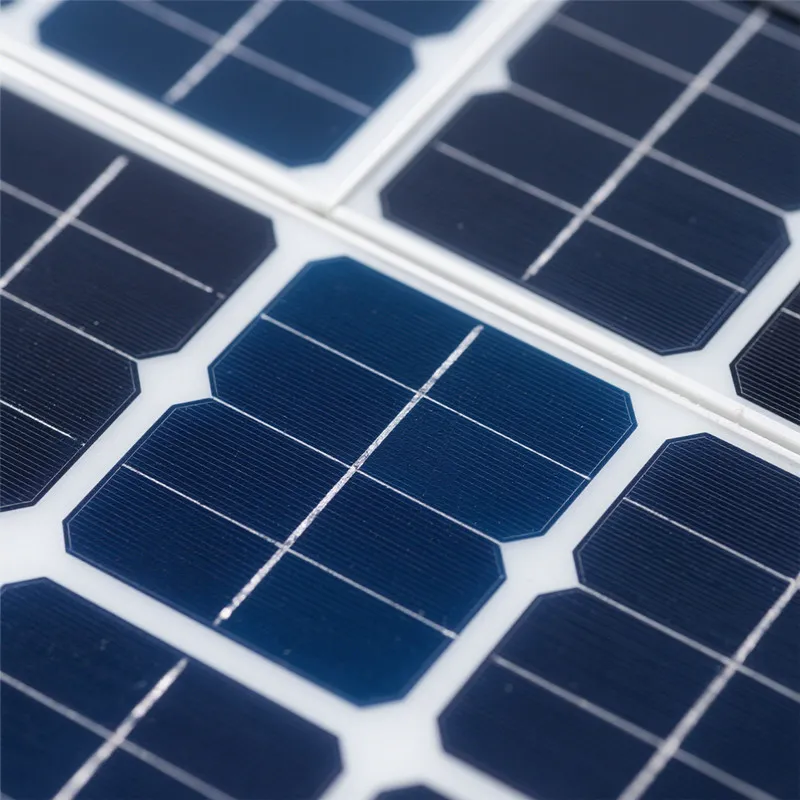

Monocrystalline Silicon Solar Panel

Technical Advantages of Monocrystalline Silicon

◎High conversion efficiency: Laboratory efficiency exceeds 24%, mass production efficiency ≥22%, 15-20% higher than traditional polycrystalline silicon (18-20%), generating more electricity under the same area.

◎Excellent low-light performance: Under low light conditions such as cloudy days or dawn/dusk (light intensity 200W/m²), it can still maintain more than 80% of the nominal power output, ensuring continuous power supply of the system.

◎Long life and low attenuation: Adopting anti-PID (Potential Induced Degradation) technology, 25-year power attenuation ≤15%, 30% longer life than polycrystalline silicon panels (25-year attenuation ≥25%).

Comparative Analysis of Monocrystalline Silicon and Polycrystalline Silicon

Parameter	Monocrystalline Silicon Panel	Polycrystalline Silicon Panel
Conversion efficiency	≥22%	18-20%
Low-light response	Excellent (small efficiency attenuation under low light)	Average (significant efficiency decline under low light)
Cost	Higher (10-15% higher price per watt)	Lower
Temperature coefficient	-0.38%/℃ (small efficiency loss at high temperature)	-0.42%/℃
Service life	25-year attenuation ≤15%	25-year attenuation ≥25%

Advanced Radiator Design

◎High thermal conductivity material: The lamp body uses 6063-T5 aviation aluminum, with a thermal conductivity ≥200W/(m·K), 1000 times higher than traditional plastic lamp bodies (thermal conductivity 0.2W/(m·K)).

◎Fin-type heat dissipation array: Optimizes air flow channels through a bionic shark gill structure, increasing the heat dissipation area by 30%. It can reduce the LED junction temperature by 15-20℃ under natural convection conditions.

◎Nano-coating protection: The surface of the heat dissipation fins is sprayed with a hydrophobic nano-coating to prevent dust and water vapor from adhering, reducing the increase in thermal resistance caused by dirt accumulation.
