Solar Led Light 100w

Product Introduction

• Low-Power Energy Saving: Equipped with an 180Wp high-efficiency monocrystalline silicon solar panel and 100Ah lithium iron phosphate battery, combined with smart MPPT control and three-level dimming, energy-saving efficiency ≥80%.
• High Color Rendering: Color rendering index Ra≥85, using full-spectrum technology and asymmetric light distribution design to accurately restore colors, with uniform illuminance and anti-glare properties.
• Convenient Installation: Integrated modular structure with patented 卡扣 (snap) brackets supports 30-minute quick installation without trenching or cabling, compatible with 3-10 meter lamp poles.
• Intelligent Operation and Maintenance: Built-in NB-IoT/LoRa modules support remote monitoring and OTA upgrades, reducing fault response time from 24 hours to 2 hours.
• Environmental Adaptability: IP65 protection rating, operating in -40°C~+65°C wide temperature range, anodized + fluorocarbon paint for corrosion resistance, suitable for various harsh environments.

Low-Power Energy Saving Technology System

• High-Efficiency Solar Power Supply System

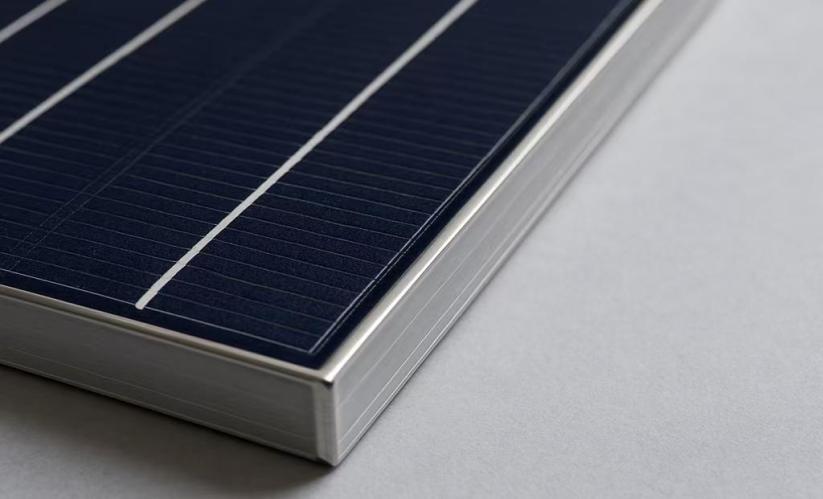

The Solar LED Light 100W is equipped with an 180Wp monocrystalline silicon solar module using N-type TOPCon (Tunneling Oxide Passivated Contact) technology, with a laboratory conversion efficiency exceeding 26.5% and mass-produced module efficiency ≥24.5%.

The system includes a smart MPPT (Maximum Power Point Tracking) controller with a conversion efficiency ≥99.5%, 5% higher than traditional PWM controllers, ensuring maximum solar energy utilization.

• 2.2 Low-Power LED Light Source Technology

Chip-Level Energy Efficiency Breakthrough: Uses Lumileds LUXEON 3535 LED chips with a single-chip luminous efficiency ≥160lm/W. The 100W model has a luminous flux of 16,000lm, saving 37.5% energy compared to traditional 100W high-pressure sodium lamps (luminous efficiency 100lm/W).

Intelligent Dimming Strategy: Built-in microwave radar sensor supports three-level dimming (100%→50%→10%), automatically reducing power at night when no one is present. Combined with light-sensitive automatic switching, the comprehensive energy-saving efficiency ≥80%.

Optimized Heat Dissipation Design: The lamp body is made of 6063-T5 aluminum alloy by die-casting, with a fin-type heat dissipation structure and graphene thermal conductive coating, thermal resistance ≤2.5K/W, ensuring LED junction temperature is controlled within 85°C and extending light source lifespan to 80,000 hours.

High Color Rendering Optical System

• Full-Spectrum Technology Architecture

Color Rendering Performance Parameters: Color rendering index Ra≥85, R9 (saturated red restoration) ≥60, a 21.4% improvement over traditional LED street lamps (Ra≤70), authentically restoring colors of traffic signs, vegetation, etc., enhancing nighttime visibility.

Spectrum Optimization Scheme: Uses 450nm blue light chips + three-primary-color phosphor combination to achieve continuous spectrum output, color tolerance ≤3SDCM, color temperature adjustable range 2700K (warm white)-6500K (cold white), adapting to different scene requirements.

• Optical Light Distribution Design

Asymmetric Batwing Light Distribution: Optimizes the beam angle to 120°×60° through freeform surface lenses, road surface illuminance uniformity U0≥0.5, glare index TI≤15, compliant with CIE S008/E:2001 standards.

Anti-Glare Technology: The lens surface uses micro-structured diffusion treatment, with upward light ratio (ULOR) ≤5%, avoiding light pollution and ensuring visual comfort for pedestrians and drivers.

Wire-Free Installation Architecture

• Modular Integrated Design

Integrated Structure: Solar panel, LED light source, battery, and controller are integrated into the lamp body, weighing only 18kg, supporting single-person installation.

Quick Installation Interface: Uses patented snap brackets, compatible with 3-10 meter lamp poles, completed within 30 minutes, improving construction efficiency by 80% compared to traditional street lamps, no need to damage roads or excavate cable trenches.

• Intelligent Operation and Maintenance System

Wireless Communication Module: Built-in NB-IoT/LoRa modules support remote monitoring of luminaire status (battery level, light intensity, fault alarms), reducing operation and maintenance response time from 24 hours to 2 hours.

OTA Upgrade Function: Can update dimming strategies and firmware versions through the cloud platform to adapt to lighting needs in different seasons and time periods.

Product Advantages

• Low-power energy-saving lighting
• high-color-rendering LED street lamps
• wire-free solar lights
• intelligent dimming systems
• IP65-protected luminaires
• off-grid lighting solutions
