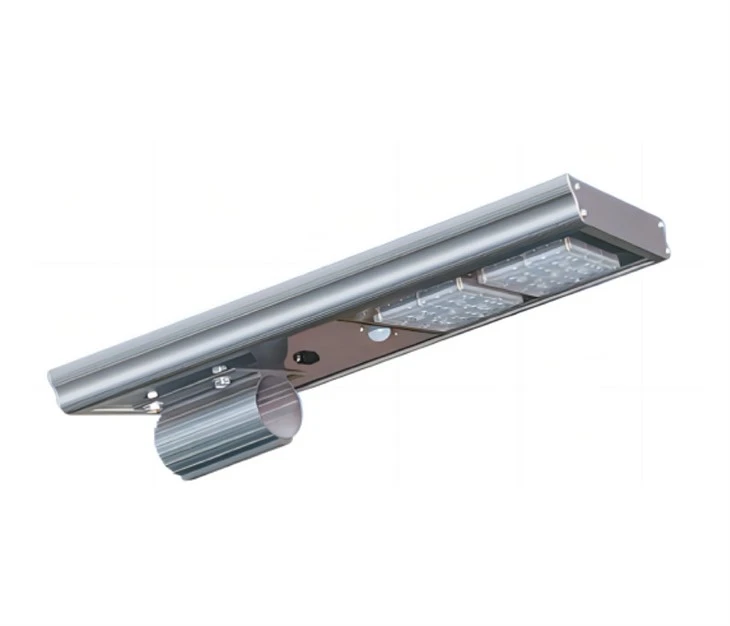

80w All in One Solar Street Light

Product Introduction

◎High-efficiency heat sink: Aluminum fins + thermal conductive adhesive work together for heat dissipation, ensuring the LED junction temperature ≤ 85℃, extending the lifespan to 50,000 hours, and the light efficiency attenuation ≤ 15% within 10 years.

Through the 6063-T5 aluminum alloy lamp body and 12 groups of parallel fin design, combined with high thermal conductivity silicone grease, rapid heat conduction and convection are achieved, solving the heat dissipation problem of high-power LEDs.

◎IP65 protection rating: Fully dustproof + protection against low-pressure water jets. It passes the GB/T 4208 standard test and is suitable for harsh environments such as high humidity and salt spray in coastal areas.

Compared with IP54, which only protects against dripping water, IP65 can withstand low-pressure water jets from all directions (12.5L/min for 3 minutes), reducing the failure rate by 80% and significantly lowering maintenance costs.

◎Infrared human body induction: Dual-element pyroelectric sensor realizes 120° wide-angle detection, with a response time ≤ 0.3 seconds, and the induction mode saves more than 60% energy.

It accurately identifies human movement through the pyroelectric effect, combined with a composite strategy of time control + light control, balancing energy-saving needs and lighting safety.

◎Comprehensive performance advantages: Energy efficiency ratio of 160lm/W, battery cycle of 3000 times, suitable for all scenarios such as rural roads, park trails, and parking lots.

Technical Parameters

High-Efficiency Heat Sink

The photoelectric conversion efficiency of LED chips is only 30%-40%, and more than 60% of the remaining electrical energy is converted into heat energy. If the heat cannot be dissipated in time, it will cause the chip junction temperature to rise, leading to problems such as accelerated light decay, shortened lifespan, and color temperature shift. The 80W All In One Solar Street Light adopts an integrated die-cast aluminum alloy lamp body, achieving efficient heat dissipation through the following technologies:

◎ Material Selection: 6063-T5 aviation-grade aluminum alloy with a thermal conductivity of 201W/(m·K), which is more than 200 times that of ordinary plastics, enabling rapid conduction of heat from the LED chip to the surface of the lamp body.

◎ Structural Optimization: The back of the lamp body is designed with 12 groups of parallel fins, each fin with a thickness of 3mm and a length of 150mm. By increasing the heat dissipation area (3 times higher than the traditional flat plate design), air convection is accelerated. For example, at an ambient temperature of 35℃, the surface temperature of the lamp body can be controlled within 55℃, ensuring the LED chip junction temperature is ≤85℃.

◎ Process Guarantee: CNC precision machining is used to ensure the fin spacing error is ≤0.1mm, avoiding air flow blockage caused by assembly gaps; high thermal conductivity silicone grease (thermal conductivity ≥3.0W/(m·K)) is applied between the lamp body and the LED substrate to reduce contact thermal resistance.

IP65 Protection Rating

The IP (Ingress Protection) rating is formulated by the IEC (International Electrotechnical Commission) to measure the protection ability of equipment enclosures against solid foreign objects and liquids. Its naming rule is "IP + two digits", where the first digit represents the dustproof level (0-6), and the second digit represents the waterproof level (0-9).

The IP65 rating means:

Dustproof Level 6: Completely prevents dust from entering the equipment, ensuring internal electronic components are not contaminated by particles.

Waterproof Level 5: Withstands low-pressure water jets from all directions (nozzle inner diameter 6.3mm, water flow 12.5L/min, spray distance 2.5-3m, duration ≥3 minutes), suitable for scenarios such as heavy rain and flushing.

◎ Structural Design: The lamp body adopts a seamless die-casting process, and silicone sealing strips (compression rate ≥30%) are used at the joints to ensure the overall waterproof and sealing performance.

◎ Material Selection: M12 stainless steel screws are used at the connection between the solar panel and the lamp body, with a corrosion resistance level of C4 (suitable for salt spray environments); the controller shell is made of ABS+PC alloy material, with an impact strength ≥150kJ/m².

◎ Test Verification: Passed the GB/T 4208-2017 standard test, including 8-hour dustproof test (talc powder dosage 2kg/m³) and 3-minute waterproof spray test, ensuring the product meets the IP65 rating requirements.

IP65 vs IP54: Generational Upgrade in Protection Performance

Product Advantages

◎ Integrated Heat Sink

◎ IP65 Protection Rating

◎ Infrared Human Body Induction

◎ Monocrystalline Silicon Solar Panel

◎ Intelligent Light Control

◎ Long-Life Led Light Source

◎ Zero Energy Consumption Lighting
